PRODUCT OVERVIEW
The Rover 200 EFI Dump Box Utility Cart is built for work and versatility. Powered by a 169cc 4-stroke, single-cylinder oil-cooled engine with electronic fuel injection (EFI), this model delivers smooth throttle response and dependable performance.
Designed with a rear dump box for hauling tools, materials, and property supplies, the Rover 200 combines utility and maneuverability in a compact platform. Independent double A-arm front suspension, rear swing arm shock system, and hydraulic disc brakes provide stability and confident control across varying terrain.
KEY FEATURES
• 169cc 4-Stroke Single Cylinder Oil-Cooled Engine
• Electronic Fuel Injection (EFI)
• 9.65 HP @ 7500 RPM
• Automatic Transmission with Chain Final Drive

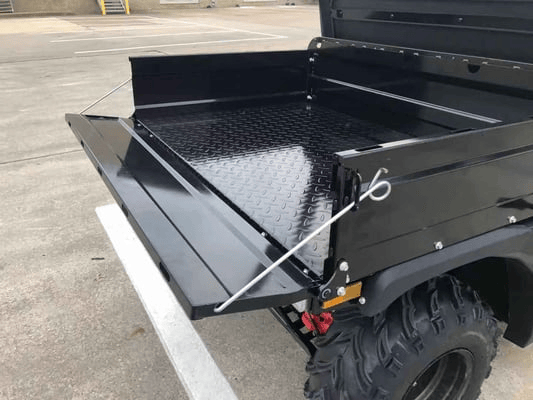

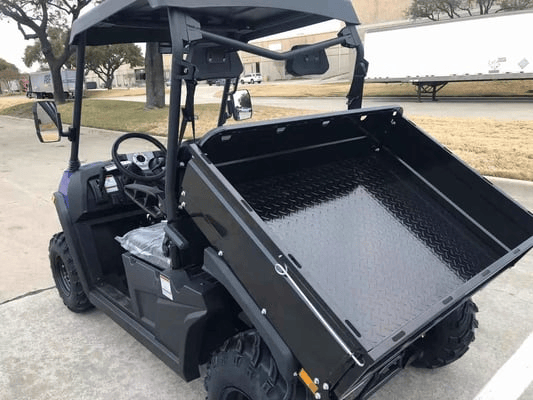

• Rear Utility Dump Box
• Hydraulic Disc Brake System
• Double A-Arm Independent Front Suspension
• Rear Swing Arm Shock Suspension
• 24 x 8-12 All-Terrain Tires
• Mechanical Parking Brake
• 5.06 Gallon Fuel Tank
• Compact Turning Radius
ENGINE INFORMATION
Engine Type: 4-Stroke, Single Cylinder, Oil-Cooled
Displacement: 169cc
Max Power: 9.65 HP @ 7500 RPM
Max Torque: 8.4 lb-ft @ 4500 RPM
Ignition: C.D.I
Battery: 12V 9Ah
Final Drive: Chain Drive
PERFORMANCE
Top Speed: 25 mph
Maximum Climbing Angle: 15°
Fuel Capacity: 5.06 Gallons
SUSPENSION & BRAKES
Front Suspension: Double A-Arm Independent
Rear Suspension: Single Shock Swing Arm
Front Suspension Travel: 4.3″
Rear Suspension Travel: 3.9″
Brake System: Hydraulic Disc
Parking System: Mechanical Parking Brake
DIMENSIONS
Overall Dimensions (L × W × H): 112″ × 52.8″ × 73.6″
Wheelbase: 72.4″
Ground Clearance: 6.1″
Front Track Width: 44″
Rear Track Width: 38.4″
Turning Radius: 141.7″
Dry Weight: 785 lbs
Front Axle Load: 297 lbs
Rear Axle Load: 488 lbs
Tire Size (Front & Rear): 24 x 8-12
