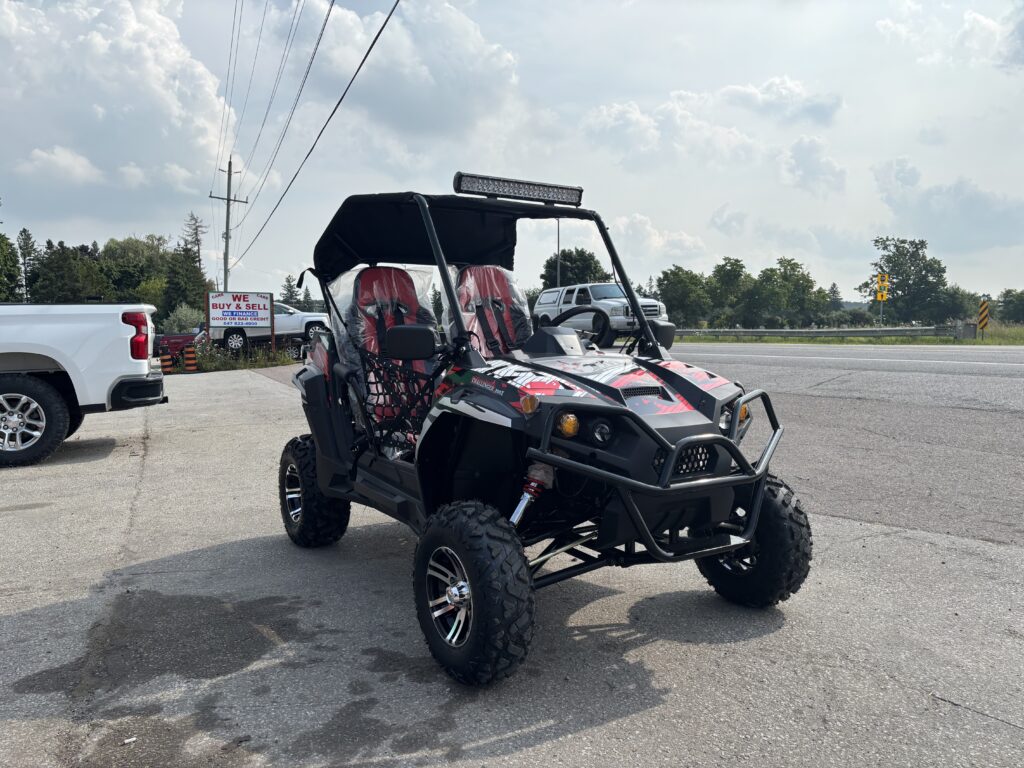

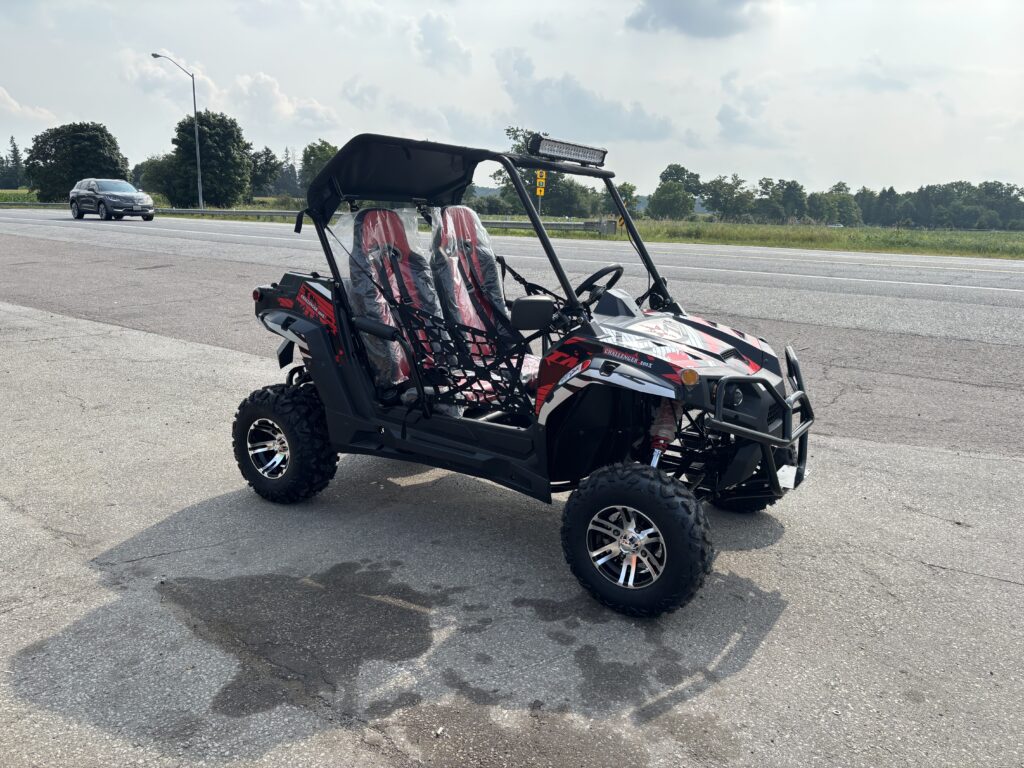

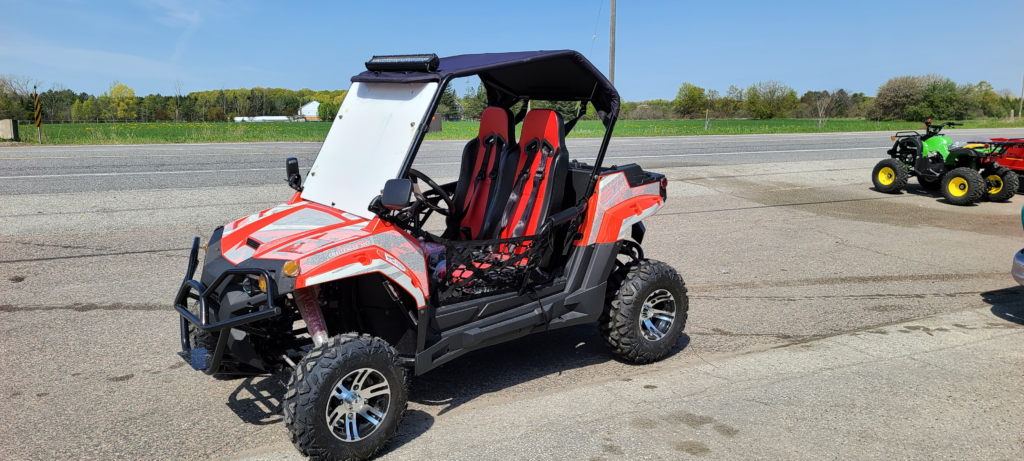

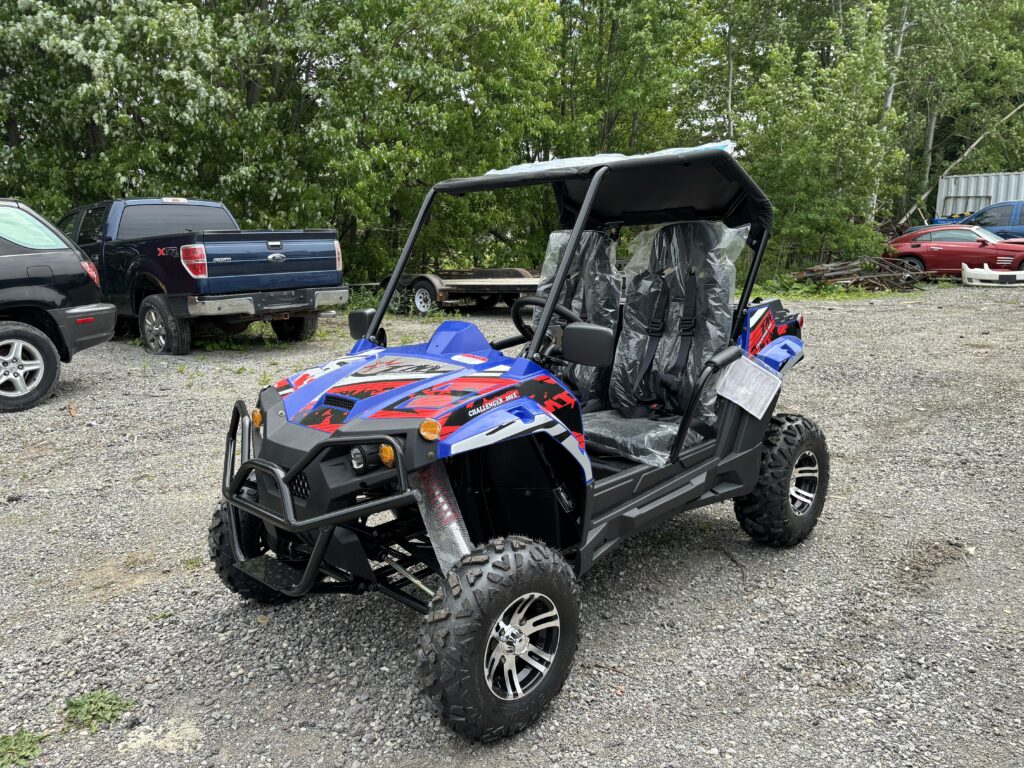

TrailMaster Challenger 200X 150cc Side-by-Side UTV

PRODUCT OVERVIEW

Put the kids in the driver’s seat with the TrailMaster Challenger 200X Side-by-Side UTV. Designed to be the perfect size for youth riders, this 150cc automatic UTV delivers smooth performance, dependable power, and built-in safety features for confident trail riding.

Powered by a reliable 4-stroke single-cylinder engine with electric start and automatic CVT transmission with reverse, the Challenger 200X offers easy operation and responsive control. With full independent front suspension, dual oil-damped rear shocks, and aggressive all-terrain tires, this UTV is built to handle rough trails and outdoor adventures.

Safety and comfort are front and center, featuring dual bucket seats with five-point harnesses, side protection nets, adjustable driver seat and steering wheel, front windshield, LED light bar, and full brush guard with canopy top.

---

KEY FEATURES

• 150cc 4-Stroke Single Cylinder Engine
• Automatic CVT Transmission with Reverse
• Electric Start
• Chain Drive Dual Rear Wheel Drive
• Independent Dual A-Arm Front Suspension
• Dual Oil-Damped Rear Shocks
• 4-Wheel Hydraulic Disc Brakes
• Adjustable Driver Seat & Steering Column
• Dual Sport Bucket Seats with 5-Point Harness
• Full Upper Brush Guard with Sunshade Canopy
• Side Protection Nets
• Front Windshield
• LED Light Bar
• Front Metal Bumper
• Rear Utility Rack
• Tow Bar
• 12V Outlet on Dashboard
• Aluminum Wheels
• Side & Center Mirrors

Available Colors:
Red
Blue
Black

---

ENGINE INFORMATION

Engine Type: 4-Stroke, Single Cylinder, Air Cooled
Displacement: 150cc
Max Power: 8.2 hp @ 7500 rpm
Max Torque: 7 lb-ft @ 6000 rpm
Bore x Stroke: 2.26″ x 2.28″
Ignition: C.D.I.
Starting System: Electric
Battery: 12V 10Ah
Carburetor: Deli (Vacuum Slide)
Engine Oil: SAE 15W-40
EPA & CARB Approved

---

PERFORMANCE

Max Speed: 35 mph
Climbing Ability: 20–25 degrees
Fuel Capacity: 1.75 gallons
Max Load Capacity: 500 lbs

---

SUSPENSION & BRAKES

Front Suspension: Independent Dual A-Arm
Rear Suspension: Double Oil-Damped Shock
Front Brakes: Hydraulic Disc
Rear Brakes: Hydraulic Disc

---

TIRES

Front Tires: 22×7-10
Rear Tires: 22×10-10

---

DIMENSIONS

Wheelbase: 72 inches
Overall Dimensions (L x W x H): 98″ x 48″ x 60″
Seat Height: 21 inches
Minimum Ground Clearance: 6.3 inches

Gross Weight: 650 lbs
Net Weight: 528 lbs
